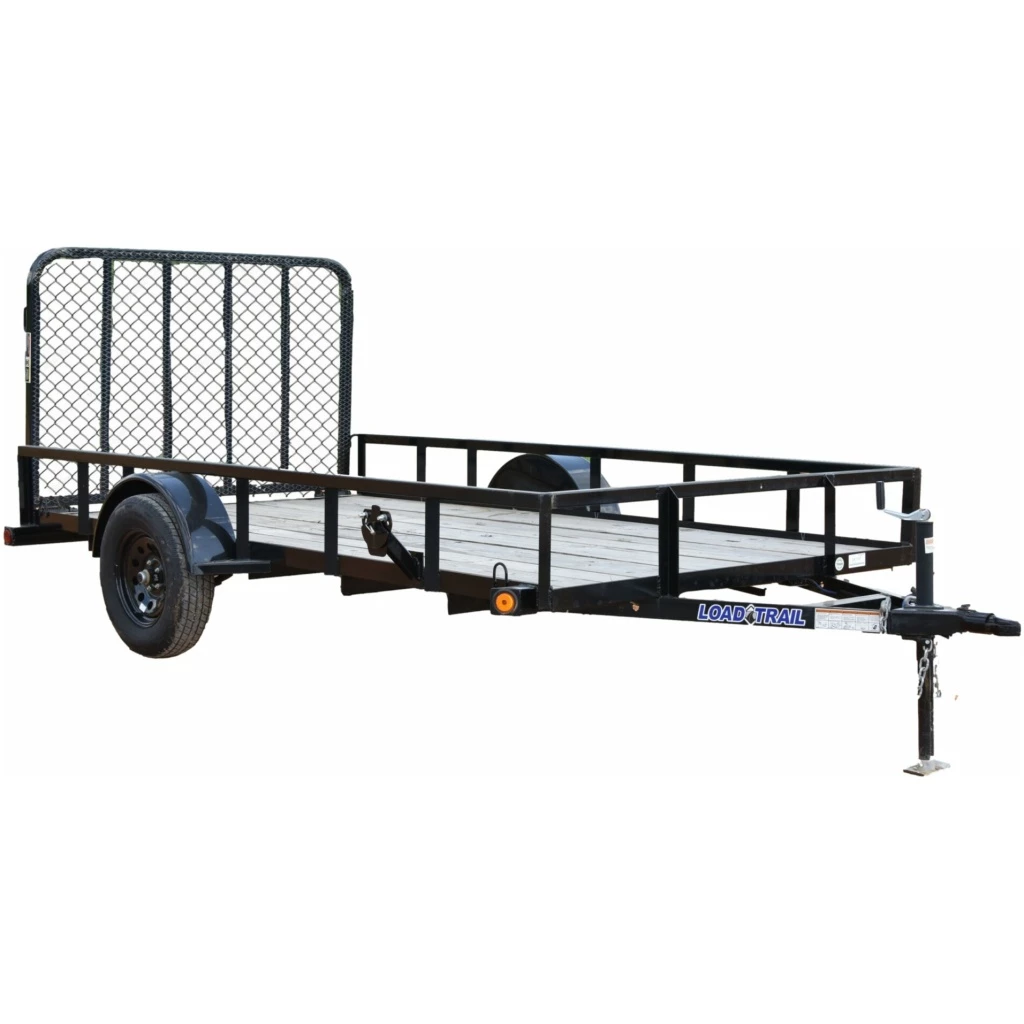

Load Trail LLC LT140 Load Trail 6.5X12 Utility Trailer HD

Axles: 1-3.500 Lb Cambered Dexter Spring Idler
Couplers: 2″ A-Frame 5,000 Lb
Crossmembers 2″ x 3″ Angle Iron (3.07 lbs/ft)
D-Rings: Hook, 3/8 X 2.75 (U-Hook)
EWR Class SINGLE AXLE UTILITY
Fenders: Weld On Smooth Plate
Finish (prep): Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
Finishing Coat/Primer Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat
Flooring: Treated Wood
Frame: 2″ x 3″ x 3/16″ Angle Iron
GAWR: 3,500 Lb (ea axle)
GVWR: 2,990 lb
Jack: 2,000 Lb Top Wind
Lights: D.O.T. Stop, Tail, Turn and Clearance LED
Product Line Single Axle & Single Axle Landscape
Product Series: SE03
Safety Chains: 1/4″ Grd. 30 w/Safety Latch Hook
Side Rails: Weld-On
Suspension: Multi-Leaf Spring
Tires: 205/75 R15 LRC
Top Rail: 2″ X 2″ 1/8″ Tubing
Tougue & Neck: 3″ Channel (3.5 lbs/ft)
Up Rights: 2″ x 2″ x 1/8″ Angle Iron
Wheels: 15″ 5-Hole Sliver Mod
Wire Harness: 16 Ga. 5-Way Double-Insulated w/4-way plug
